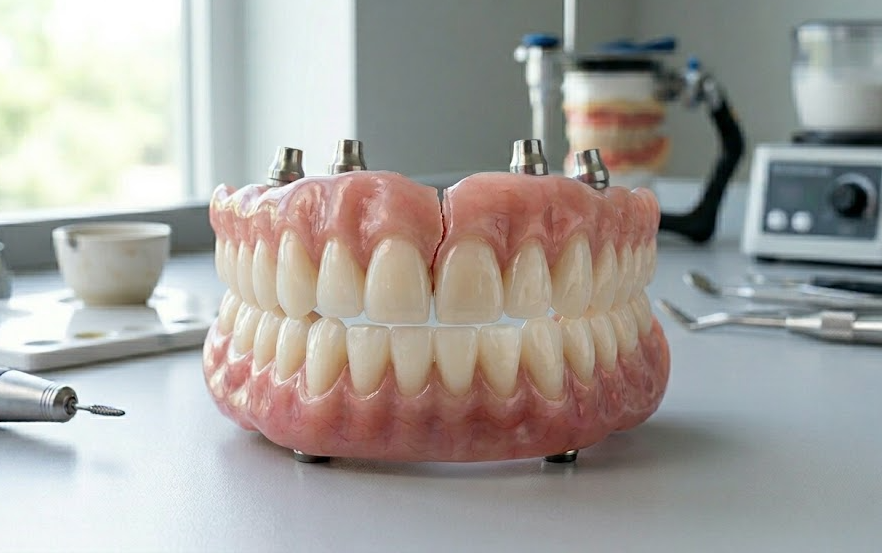

Why Dental Zirconia Fractures — And How to Prevent It
A clinical guide to understanding fracture mechanics in single units, long-span bridges, and full-arch prostheses, with actionable strategies for lasting restorations.
Zirconia has transformed restorative dentistry. Its combination of biocompatibility, strength, and increasingly refined aesthetics has made it the material of choice for everything from posterior crowns to full-arch implant prostheses. Yet despite flexural strength values that dwarf traditional ceramics, zirconia restorations do fracture — sometimes within months of delivery. Understanding why these failures occur across different restoration types is the first step toward eliminating them from your practice.
The reality is that most zirconia fractures are multifactorial. They rarely stem from a single design flaw or material defect alone. Instead, they arise from the intersection of material selection, restoration design, laboratory handling, occlusal forces, and cementation technique. This blog breaks down the specific fracture risks for each restoration category and gives you concrete strategies to prevent them.
Part 01The Material Itself: Understanding What You're Working With
Before diving into individual restoration types, it helps to understand the fundamental relationship that governs zirconia performance: the tradeoff between translucency and strength.
Dental zirconia is classified by its yttria content — 3Y, 4Y, and 5Y — which controls the ratio of tetragonal to cubic crystal phases. The tetragonal phase is what gives zirconia its legendary toughness through a mechanism called transformation toughening: when a crack begins to propagate, the crystals at the crack tip transform from tetragonal to monoclinic phase, expanding in volume by roughly 2.5% and effectively compressing the crack shut. As yttria content increases from 3Y to 5Y, the cubic phase fraction rises and this transformation toughening mechanism diminishes — delivering better light transmission at the cost of fracture resistance.
| Zirconia Grade | Flexural Strength | Translucency | Best Use Case |
|---|---|---|---|
| 3Y-TZP | 900 – 1,200 MPa | Low–Moderate | Posterior crowns, long-span bridges, full-arch frameworks |
| 4Y-TZP | 550 – 800 MPa | Moderate–High | Premolars, short anterior bridges, aesthetic zone |
| 5Y-PSZ | 500 – 650 MPa | High | Anterior single crowns, veneers, low-stress restorations |
| Multilayer (3Y→5Y) | Variable by region | Gradient | Monolithic crowns and bridges with zoned strength/aesthetics |
The golden rule: choose the zirconia grade for the biomechanical demand of the case, not the aesthetic preference of the moment. Aesthetics can be refined; a fractured framework cannot.
Single-Unit Crowns: Common Fracture Causes
Single-unit zirconia crowns generally have the lowest fracture rates of any zirconia restoration type. However, failures still occur, and long-term research tracking restorations over fifteen years has shown complication rates that deserve attention — particularly veneer chipping on layered restorations and loss of retention from cementation issues.
Veneer Chipping
Layered crowns with porcelain applied over a zirconia coping are vulnerable at the core-veneer interface. Veneering ceramics have far lower fracture toughness than the zirconia core beneath them.
Wrong Grade Selection
Using 5Y-PSZ in the posterior molar region where occlusal forces regularly exceed 400 N removes the transformation toughening safety net that prevents crack propagation.
Insufficient Thickness
Over-reduction of the zirconia wall thickness below manufacturer minimums — especially at the occlusal surface — creates stress concentration points under load.
Poor Cementation
An excessively thick or uneven cement layer creates voids and uneven stress distribution, initiating micro-cracks that grow under cyclic loading.
How to Prevent Single-Unit Fractures
Match the Grade to the Location
Use 3Y-TZP or high-strength 4Y for posterior molars, especially in bruxers. Reserve 5Y-PSZ for anterior teeth under normal occlusal loads. Multilayer discs can provide a smart compromise with strength at the intaglio and translucency at the incisal.
Go Monolithic When Possible
Monolithic zirconia eliminates the weak link of the veneer-core interface entirely. Modern multilayer blanks now deliver aesthetics that satisfy most cases without porcelain layering.
Respect Minimum Thickness Guidelines
Maintain at least 1.0 mm wall thickness for monolithic 3Y-TZP and 1.5 mm for translucent grades. Verify occlusal clearance before seating.
Optimize the Cement Layer
Ensure uniform, thin cementation. Sandblast the intaglio surface at low pressure (1 bar, 50 μm alumina) to improve bonding without inducing surface micro-damage. Thick cement layers have been linked to premature fracture in multiple case analyses.
Long-Span Bridges: Where Physics Works Against You
As span length increases, fracture risk rises dramatically. Research has demonstrated that four-unit bridges with a double pontic show roughly half the fracture resistance of three-unit single-pontic designs. This is not surprising from an engineering standpoint — a longer beam under bending load concentrates more stress at its connectors — but it has profound implications for clinical design decisions.
The connector area between pontic and abutment is the most common fracture origin in multi-unit bridges. Fractographic studies consistently show crack initiation at this junction, propagating from the gingival embrasure toward the occlusal surface under bending stress.
Why Long-Span Bridges Fail
Undersized connectors. This is the single most preventable cause of bridge fracture. For a 3Y-TZP single-pontic bridge, the minimum recommended connector cross-section is approximately 9 mm². That number increases substantially for 4Y and 5Y grades — some manufacturers recommend 12 mm² or more. For double-pontic designs, the requirement climbs further still. Many lab-fabricated bridges fail to meet these thresholds, particularly when the technician prioritizes embrasure aesthetics over structural geometry.
Using the wrong zirconia grade for the span. High-translucency 5Y-PSZ should not be used for long-span bridges. The loss of transformation toughening in the cubic phase means cracks propagate freely once initiated. A 3Y-TZP framework is essential for any bridge spanning more than two pontics, and strongly recommended for any posterior multi-unit design.
Uneven abutment support. When a bridge rests on three or more abutments that are not coplanar — due to implant angulation differences, tissue height variation, or framework misfit — the restoration experiences uneven fulcrum loading rather than distributed stress. This scenario is especially dangerous in long-span anterior bridges, where fractographic evidence has shown unexpected fracture origins on the palatal surface rather than the expected gingival connector zone.
Surface damage from milling. CAM bur marks on the pre-sintered framework create micro-defects that expand during the sintering process. These become embedded stress risers that the naked eye cannot detect but that serve as crack initiation sites under cyclic loading.
Connector cross-sections: Verify in CAD software before milling. Use the manufacturer's minimum as a floor, not a target — design 20–30% above the minimum when anatomy permits.
Material grade: 3Y-TZP for all posterior bridges and any span exceeding three units. 4Y only for short anterior spans under verified low occlusal load.
Sintering protocol: Follow slow heating and cooling curves. Zirconia is a poor thermal conductor — rapid temperature changes create internal thermal gradients that induce residual stress.
Passive fit: Verify framework fit on the model and intraorally before glazing. Any rocking or gap indicates a misfit that will concentrate stress at the unsupported connector.
Full-Arch Prostheses: The Highest-Stakes Application
Full-arch implant-supported zirconia restorations represent the pinnacle of both complexity and consequence. They span the entire arch, must withstand bilateral mastication forces simultaneously, and once fractured, typically cannot be repaired — requiring complete replacement at enormous cost and inconvenience to the patient.
The fracture mechanisms in full-arch prostheses combine and amplify every risk factor present in shorter spans, with several additional complications unique to the full-arch scenario.
Full-Arch-Specific Failure Factors
Thin Framework Regions
Digital design software can produce framework zones that fall below manufacturer thickness recommendations — especially in areas of anatomical constraint. STL analysis of prematurely fractured cases has revealed this as a consistent finding.
Implant Misalignment
When implants are not parallel or when the prosthesis does not seat with truly passive fit, tightening the screws introduces internal stress that persists throughout the life of the restoration.
Bruxism & Parafunction
Nocturnal clenching and grinding can produce forces of 800 N or more — well above normal mastication. Over thousands of cycles, even high-strength zirconia accumulates subcritical crack growth.
Bone Loss & Implant Instability
Progressive bone loss around one or more implants changes the biomechanical support pattern of the entire arch, creating cantilever effects the original design did not account for.
Unlike shorter restorations, a full-arch zirconia fracture is almost never repairable. The material cannot be reliably patched or bonded once a through-framework crack occurs. Prevention through proper design, material selection, and occlusal management is the only viable strategy.
Prevention & Management Strategies for Full Arch
Use 3Y-TZP Exclusively for the Framework
Full-arch prostheses demand maximum fracture toughness. Reserve higher-translucency grades for the cutback zone only if using a multilayer approach, and never compromise the framework's structural backbone.
Verify Thickness Digitally Before Milling
Run a cross-section analysis of the STL file at every connector and high-stress zone. Flag any region below the manufacturer's recommended minimum and redesign before committing to milling.
Achieve Truly Passive Fit
Use the Sheffield test* (see Annex), or single-screw test to verify passivity before final delivery.
Manage Occlusion Aggressively
Prescribe a hard night guard for every full-arch patient without exception. Evaluate and adjust occlusion at regular recall intervals. Pay particular attention to canine guidance, group function distribution, and elimination of balancing-side interferences.
Monitor Implant Health Longitudinally
Annual radiographic assessment of bone levels around all supporting implants allows early detection of progressive bone loss before it compromises the biomechanical support structure.
Consider Slow Sintering Protocols
Extended heating and cooling curves during sintering reduce internal residual stress. Zirconia's low thermal conductivity means rapid temperature changes create uneven internal expansion and contraction, embedding micro-stresses that weaken the final product.
Lab-Side Factors That Clinicians Should Be Monitoring
Many fracture-causing defects originate in the laboratory, not the operatory. Clinicians who communicate clearly with their lab partners and understand the manufacturing process can intercept problems before they reach the patient.
Zirconia brand and grade: Know exactly which material is being used. Inferior or off-brand zirconia blanks with inconsistent density can contain micro-defects that only manifest after sintering and clinical loading.
Connector dimensions: Request documentation of connector cross-sections for every bridge case. This should be standard practice, not an afterthought.
Sintering schedule: Confirm that the lab follows the manufacturer's recommended sintering curve — including appropriate ramp rates and hold times — and is not shortcutting with rapid-fire cycles to increase throughput.
Milling bur condition: Worn milling burs create rougher surfaces with deeper defects. Labs should maintain strict bur replacement schedules, especially for zirconia.
When Fracture Happens: What to Do Next
Despite best efforts, fractures will occasionally occur. Having a clear protocol minimizes patient distress and guides the clinical response.
For veneer chipping on layered restorations, small chips can sometimes be polished smooth or repaired with resin composite as a temporary measure. For recurrent chipping, consider converting to a monolithic design at remake.
For framework fracture on single units or short bridges, the restoration must be remade. Use the failure as a diagnostic opportunity — examine the fracture surfaces for signs of connector undersizing, surface defects from milling, or evidence of excessive cement thickness. Adjust the remake design accordingly.
For full-arch framework fracture, the prosthesis must be removed, the implants and supporting tissue assessed for health, and a complete remake initiated. This is also the time to reconsider the prosthetic design: was the framework thick enough throughout? Was passive fit verified? Should additional implants be placed to improve support distribution? A temporary prosthesis bridges the gap while the replacement is fabricated.
Every fracture is diagnostic data. The clinician who examines the broken pieces carefully — rather than simply remaking — learns something that prevents the next failure.
Building Restorations That Last
Zirconia is a remarkable material, but it is not indestructible. Its performance depends entirely on the decisions made at every stage of the treatment workflow — from material grade selection and digital design, through milling and sintering, to cementation, occlusal adjustment, and long-term maintenance.
The evidence is clear: most zirconia fractures are preventable. They result from using the wrong grade for the biomechanical demand, from designing connectors too small, from sintering too fast, from ignoring parafunction, or from accepting a framework that does not fit passively. Each of these is a controllable variable.
By understanding the distinct fracture risks across single units, long-span bridges, and full-arch prostheses — and by maintaining rigorous communication between the clinical and laboratory teams — practitioners can deliver zirconia restorations that serve patients reliably for many years.
Annex * The Sheffield test is a dental one-screw test used to check the passive fit of an implant-supported framework, bar, or bridge. It helps confirm that the prosthesis seats without tension; if tightening one screw causes a gap at other implants, the fit is not passive.roedentallab+1
How it works
A clinician tightens only one screw on one implant and visually checks whether the rest of the framework sits flush on the other implants or abutments. If there is rocking, a visible gap, or a “shadow,” that suggests a misfit and the framework may need adjustment or remaking.sae-dental+1
Why it matters
A non-passive fit can place unwanted stress on screws, the framework, and supporting implants. The test is commonly used in full-arch implant prosthetics and is often repeated during try-in and final delivery.bauersmiles+1
In plain terms
Think of it as a “does this bridge sit naturally, or is something forcing it into place?” check for implant prosthetics
