Every ceramist knows the sinking feeling: you open the furnace door and the restoration is chalky, distorted, or cracked. Nine times out of ten, the culprit is not the porcelain — it is the firing schedule. Temperature, ramp rate, hold time, and cooling speed all interact in ways that can make or break your work.

Whether you are layering feldspathic porcelain over metal, applying CrystalCeram® powders to zirconia, or finishing a full-arch with stain and glaze, understanding what happens inside the furnace gives you control that guesswork never will. This guide breaks down each phase of the firing cycle, explains the science behind the numbers, and shows you how to troubleshoot the most common problems.

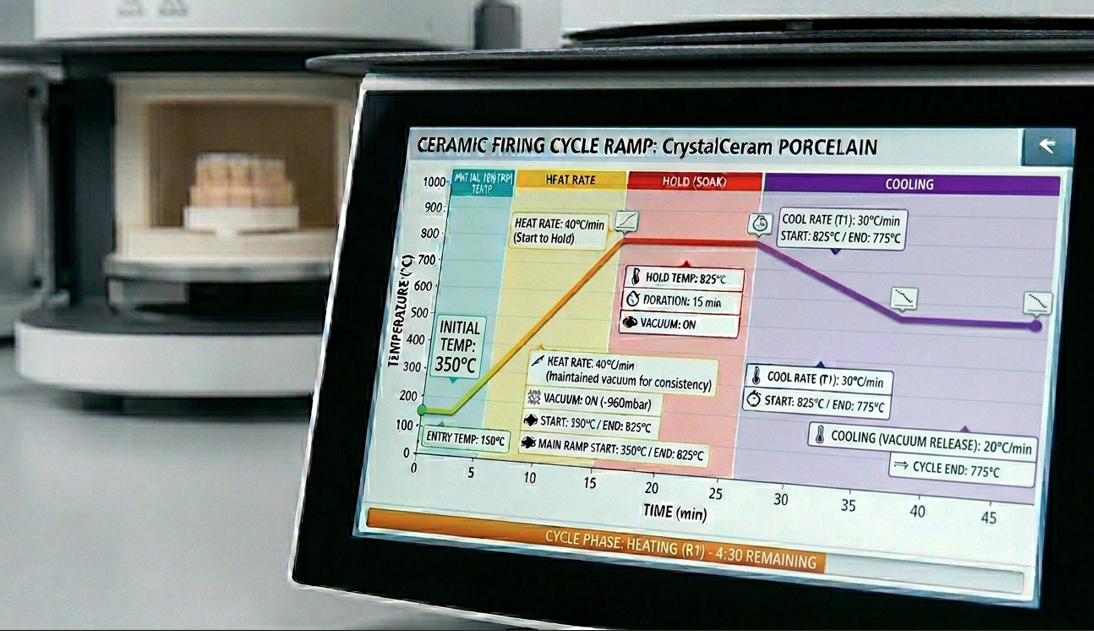

Understanding the Firing Cycle

A firing cycle is not a single event — it is a carefully sequenced series of thermal phases, each with a specific purpose. Skipping or rushing any phase cascades into problems downstream.

Phase 1 — Pre-Drying

Before the furnace ramps up, porcelain needs a controlled drying stage to evaporate residual moisture from the modeling liquid. If moisture remains trapped inside the porcelain body when temperatures climb, steam pressure builds and creates micro-porosity, bubbles, or surface defects that no amount of reglazing will fix. Most furnaces pre-dry between 400–600°C for 2–6 minutes with the muffle door cracked open.

Phase 2 — Ramp Rate

The ramp rate — how quickly the furnace climbs from the entry temperature to peak temperature — directly affects how evenly heat distributes through the ceramic mass. Too fast, and the exterior of the restoration reaches maturity while the interior remains under-fired. Too slow, and you waste time without meaningful benefit. Most dental porcelains perform well at ramp rates between 45–55°C per minute, though thick or bulky restorations may benefit from slower rates.

Phase 3 — Peak Temperature

This is the headline number most ceramists fixate on, but it is only one part of the equation. The peak temperature determines how far the glass matrix flows and how much the ceramic particles fuse together. Even 10°C above or below the target can shift the aesthetic result significantly.

Phase 4 — Hold Time (Heat Soak)

Hold time is the duration the furnace maintains peak temperature before cooling begins. This is where the actual "work" of vitrification happens — the ceramic body reaches thermal equilibrium and the glass phase flows uniformly. Extending hold time by 30–60 seconds can sometimes accomplish what raising the temperature by 10–15°C would, but with less risk of over-firing.

Phase 5 — Cooling

Cooling is arguably the most underestimated phase. Fast cooling generates significant thermal gradients between the surface and interior of the restoration, especially on zirconia frameworks where porcelain and core have very different thermal conductivities. These gradients create residual tensile stresses that may not cause immediate failure but can lead to delayed cracks days or months later.

Temperature Ranges at a Glance

Different materials and firing stages operate at dramatically different temperatures. Confusing these ranges — or using a program designed for one material on another — is a common and costly error.

Overfired vs. Underfired: Knowing the Signs

Recognizing whether a restoration has been overfired or underfired is fundamental to correcting your schedule. Here are the telltale signs of each:

The 5 Most Common Firing Mistakes

1. Skipping or shortening the pre-dry Residual moisture from modeling liquid creates trapped steam during ramp-up, resulting in internal bubbles, surface pinholes, and cloudy translucency — defects that cannot be corrected with reglazing.
2. Using the wrong program for the material Every ceramic system has unique thermal requirements. Running a feldspathic program on zirconia layering powder (or vice versa) produces predictably poor results. Always verify the program matches the exact material and layer you are firing.
3. Ignoring furnace calibration drift Thermocouples degrade over time and heating elements wear. A furnace that was accurate six months ago may be reading 15–25°C off today. Regular calibration checks — or at minimum, periodic test firings with reference samples — prevent gradual quality decline.
4. Fast-cooling porcelain on zirconia Opening the furnace door immediately after the hold cycle creates dramatic temperature gradients. For PFM work this is less critical because metal conducts heat rapidly and keeps gradients small. But zirconia is an insulator — it holds heat while the porcelain surface cools rapidly, building stress that causes delayed chipping or cracking.
5. Compensating with temperature instead of hold time When results look slightly underfired, the instinct is to crank the temperature higher. But a modest increase in hold time (30–60 seconds) achieves more uniform maturation with far less risk of over-firing the surface while the core catches up.

Practical Tips for Dialing In Your Schedule

Getting your firing schedule right is part science, part craftsmanship. Here are field-tested approaches that experienced ceramists rely on:

Start with the manufacturer's recommendation

Material manufacturers — including CGI — publish recommended firing parameters for good reason. These schedules represent the sweet spot where the material's coefficient of thermal expansion, glass transition temperature, and optical properties are optimized. Use them as your baseline, not someone else's modified program.

Adjust in small increments

When fine-tuning, change only one variable at a time — and by the smallest meaningful amount. A 5°C temperature adjustment or a 15-second hold-time change is usually enough to see a visible difference. Changing multiple parameters simultaneously makes it impossible to isolate what improved (or worsened) the result.

Account for case geometry

A thin anterior veneer and a bulky posterior molar crown do not behave the same in the furnace. Thicker restorations absorb heat more slowly, which means the interior may be significantly cooler than the surface at any given moment. Consider slower ramp rates or slightly longer hold times for bulkier cases.

Don't overload the firing tray

Placing too many units on the tray — or crowding them together — disrupts airflow and creates localized hot and cold spots. Even heat distribution across the tray is essential for consistent results, especially when firing multiple units that will sit side-by-side in the patient's mouth.

"Temperature and time are inseparable partners. You can often achieve with time what you cannot achieve with temperature alone — and with far less risk." — Principle of dental ceramic firing

Keep a firing log

Record your parameters and results for every case — or at least for every time you adjust a program. Over weeks and months, this log becomes invaluable. It reveals seasonal patterns (barometric pressure can affect translucency), tracks furnace drift, and gives you a reference to return to when results go off track.
