Ask any lab technician who has remade a full-arch bar or bridge for the third time what went wrong, and the answer usually traces back to the same place: the implant position data was slightly off before design ever began. Full-arch cases magnify small errors. A discrepancy that would be invisible on a single crown becomes a screw that won't seat, a bar that rocks, or a framework that has to be sectioned and soldered chairside. Photogrammetry exists to close that gap at the source, and it is quickly becoming the standard of care for multi-implant full-arch work.

This post covers what photogrammetry actually is, why it outperforms conventional impressions and intraoral scanning for full-arch cases, and what it means for the lab side of the workflow — where the CrystalCeram® layering system ultimately brings the restoration to life.

What photogrammetry actually measures

Photogrammetry is the science of extracting precise three-dimensional coordinates from a series of overlapping two-dimensional photographs. In implant dentistry, a camera system captures multiple images of scan bodies or coded markers threaded onto the implants, and specialized software triangulates the exact spatial position and angulation of each implant relative to the others — the same principle illustrated in the capture diagram above, where two camera positions cross-reference each marker to fix its coordinates.

The key distinction from an intraoral scanner is that photogrammetry does not build a model by stitching together surface geometry as a wand moves across the arch. It measures implant positions directly, in a single capture sequence, using calibrated optics. That distinction matters more as the number of implants and the span between them increases — which is exactly the situation in every full-arch case.

Why conventional methods struggle with full-arch cases

Full-arch restorations typically span four to eight implants placed across a wide, often curved arch — and the posterior implants in an All-on-4 or All-on-6 case are frequently angled to avoid anatomical risk zones like the inferior alveolar nerve or the sinus floor. That combination of distance, curvature, and angulation is precisely where older impression methods lose accuracy.

Physical impressions

Splinted open-tray impressions can work, but they are technique-sensitive, prone to material distortion during setting and pouring, and require a separate verification jig step to confirm accuracy before the lab commits to a final framework design.

Intraoral scanning alone

Intraoral scanners excel at capturing soft tissue and gingival architecture, but on a full arch they rely on image stitching to build the complete model. A 2026 systematic review found that photogrammetry systems showed significantly greater trueness and precision than intraoral scanners for capturing 3D implant positions in complete-arch and multi-implant restorations.

How photogrammetry fits into the full-arch digital workflow

Most contemporary full-arch protocols now combine two data sources rather than relying on either alone: photogrammetry for implant position, and intraoral scanning for soft tissue and gingival contour. Many advanced full-arch workflows use both technologies together — intraoral scanning for anatomy and photogrammetry for implant position — because each is doing the part of the job it's actually best at.

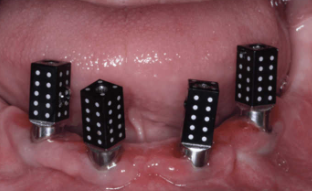

1. Scan body placement. Coded scan bodies or fiducial markers are seated on each implant immediately after final torque, before soft tissue can shift or bleeding can obscure the site.
2. Calibrated image capture. A handheld or intraoral photogrammetry device captures a sequence of overlapping images of the markers from multiple angles.
3. Coordinate triangulation. Proprietary software calculates the precise x, y, z position and angulation of every implant platform relative to the others, independent of any single scan pass.
4. Soft tissue and gingival capture. An intraoral scan (or facially driven scan) fills in the anatomical detail — attached gingiva, mucogingival junction, tissue contour — that photogrammetry doesn't capture.
5. File merge and transmission to the lab. The implant coordinate file and the soft tissue STL are merged in design software and sent to the lab as a single, verified digital impression — no physical impression or verification jig required.

What this changes at the lab bench

For the technician, a photogrammetry-based file changes the starting conditions of the case in a few concrete ways:

• Design confidence goes up front-loaded, not at try-in. Because the implant relationship data has already been verified for accuracy before it reaches the lab, the technician can commit to a milled titanium bar or printed framework design without waiting on a physical verification jig to come back from the clinic.
• Passive fit becomes achievable on wider spans. The larger the distance between the most anterior and most posterior implant, the more any positional error gets magnified across the bridge. Direct-measured implant coordinates keep that error from compounding, which is what allows a screw-retained full-arch prosthesis to seat without needing to be sectioned and re-joined.
• Remakes and chairside adjustments drop. A framework built on inaccurate implant position data doesn't fail gracefully — it fails at delivery, after the case has already been milled, layered, and glazed. Getting the position data right at capture is the cheapest place in the whole workflow to prevent that.
• The path to the ceramic layer stays unchanged. Once the substructure fits passively, the esthetic work — zirconia dentine, enamel, and gum layering with CrystalCeram® powders and characterization stains — proceeds exactly as it would on any well-fitting framework. Photogrammetry doesn't change how the case is stained or glazed; it changes whether the technician is layering ceramic onto a foundation that was actually going to fit.

Photogrammetry vs. intraoral scanning: a quick comparison

The takeaway for labs

Photogrammetry doesn't change what happens on the ceramic side of the lab — the layering sequence, the shade logic, the firing schedule for CrystalCeram® powders and gum stains all stay the same. What it changes is the reliability of everything that has to happen before layering even starts. A passively fitting substructure is the precondition for every esthetic decision that follows it, and photogrammetry is, right now, the most reliable way for the clinical side to guarantee that precondition on a full-arch case.

Labs that understand this workflow — and can speak to it confidently with referring practices — are positioned to take on more full-arch work with fewer remakes and less chair time lost to adjustment.
