Bonding Materials for Titanium & Zirconia Frameworks
A practical guide to the CGI Ti and Zir bonding systems — how Ceramic Spheres, Ti Bonder, and Zir Bonder work together to create strong, reliable bonds between porcelain, composite, and metal frameworks.
Why Bonding to Titanium and Zirconia Is Different
Titanium and zirconia are two of the most widely used framework materials in modern dental laboratories. Both offer exceptional biocompatibility and mechanical strength — but both present specific challenges when it comes to bonding porcelain or composite to their surfaces.
Unlike traditional metal-ceramic systems, titanium and zirconia cannot be bonded using the same surface preparation and chemical primers developed for gold alloys or feldspathic porcelain. Their surface chemistry requires a dedicated approach to achieve reliable, long-term adhesion.
The CGI Ti and Zir Bonding Systems
CGI developed the Ti and Zir Bonding Systems specifically to address the adhesion challenges of modern titanium and zirconia-based restorations. The system combines mechanical and chemical retention strategies to create a reliable, durable bond between frameworks and overlying materials — whether porcelain, composite, or opaque masking layers.
The system is available in two configurations depending on the clinical need: the Ti-Bonder for titanium frameworks and the Zir-Bonder for zirconia-composite cases.
Specially formulated to be applied over titanium frameworks before porcelain build-up. Ti Bonder significantly reduces oxide layer formation during firing — the primary cause of bond failure in titanium-ceramic restorations. It improves adhesion for ceramic, composite, or any other material applied over the framework, creating a chemically active surface that accepts veneering materials reliably.
Applied in combination with Ti Bonder to mask the dark grey color of titanium frameworks. The opaque mask paste creates an optically neutral base, preventing the framework color from transmitting through overlying ceramics or composites. It is fired before the main build-up to establish a stable, opaque foundation layer combined with ceramic spheres to provide mechanical retention before applying composite or porcelain.
Designed specifically for zirconia frameworks where composite is used as the veneering material. Zir Bonder activates the zirconia surface chemically, enabling composite to form a reliable adhesive bond to the framework. Combined with Ceramic Spheres, it creates both mechanical and chemical retention for composite-on-zirconia restorations — enabling repositioning and adjustment options not available with fired ceramics.
Microscopic ceramic spheres that are baked directly onto the framework surface using the Ti Opaque Mask or Zir bonder. When fired, the spheres fuse to the surface and create a textured, sandpaper-like topography that dramatically increases the mechanical retention available to overlying composites or ceramics. Available in yellow and pink variants for different framework types or area of the structure.
This liquid is specially engineered to complement the Ti and Zir bonder materials, used to bring the materials to a working consistency for easy application on the Titanium or Zirconia structures.
How Ceramic Spheres Work
The Science of Surface Texture
Ceramic Spheres are the mechanical retention element of the CGI Ti and Zir Bonding Systems. When applied over the Ti opaque mask or Zir Bonder over a framework surface, they are fired at the appropriate temperature and permanently fuse to the substrate. The result is a microscale textured surface that functions similarly to sandpaper — dramatically increasing the contact area and interlocking geometry available for composite adhesion.
This approach is particularly valuable for zirconia-composite cases. Conventional sandblasting of sintered zirconia can introduce micro-cracks and weaken the material. Ceramic Spheres provide superior mechanical retention without the structural risks associated with aggressive abrasive surface preparation.
For titanium frameworks, the spheres work in combination with Ti Bonder and Ti opaque mask to create a dual retention mechanism — the bonder reduces oxide formation and activates the surface chemically, while the Ti opaque mask covers the alloy completely and the spheres provide the physical geometry for composite or ceramic to lock into.
The Zir-Bonder system with Ceramic Spheres is particularly useful for full-arch hybrid restorations where composite veneering is used on a zirconia framework. Because composite can be added, removed, and repositioned without refiring the framework, the system allows intraoral adjustments and realignments after seating — a significant clinical advantage that fired porcelain cannot offer.
Ti-Bonding System — Step-by-Step Protocol
The following workflow reflects the standard application sequence for the Ti-Bonder Kit on a titanium framework. This protocol establishes both chemical and mechanical retention before any porcelain or composite is applied.
Clean the sintered titanium framework thoroughly. Remove all contamination with appropriate solvents. The surface must be completely free of oils, salts, and residues before any bonding material is applied.
Apply a thin, even coat of Ti Bonder over all surfaces that will receive ceramic or composite. Fire according to the recommended temperature cycle. The bonder reduces oxide formation and activates the surface for subsequent layers.
Apply Ti Opaque Mask Paste over the previously fired Ti bonder surface to mask the framework color. Build an even, opaque foundation layer and fire. This step creates the optical foundation for all subsequent ceramic or composite work.
Spheres will be applied evenly to the Ti opaque mask after it has been applied on top of the already fired Ti bonder material. Fire at the recommended temperature to fuse the spheres permanently to the framework, creating the textured mechanical retention surface.
Proceed with standard porcelain layering using CrystalCeram® or other compatible ceramics, or apply composite directly over the prepared surface. The combination of Ti Bonder, Ti opaque Paste mask and Ceramic Spheres provide a reliable, stable foundation for the final restoration.
Zir-Bonder Kit — Composite on Zirconia
The Zir-Bonder Kit addresses one of the fastest-growing challenges in modern dental laboratories: using composite as a veneering material over zirconia frameworks. This combination is increasingly popular for full-arch implant-supported restorations because composite allows chairside adjustments, repairs, and realignments that fired ceramics cannot accommodate.
The core challenge is that smooth sintered zirconia has very low surface energy and provides minimal mechanical retention for composite. The Zir-Bonder system solves this through a combination of chemical activation with Zir Bonder paste and mechanical retention through Ceramic Spheres fired onto the framework surface.
"The ceramic spheres baked onto the zirconia help create retention with the composite, giving it a stronger bond and opening up opportunities for realignments on patients while giving the full arch a beautiful aesthetic."
Comparison: Ti-Bonder vs Zir-Bonder
| Feature | Ti-Bonder Kit | Zir-Bonder Kit |
|---|---|---|
|
Framework Material |
Titanium | Zirconia |
|
Primary Use |
Porcelain or composite on Titanium | Composite on Zirconia |
|
Oxide Reduction |
Yes — key function of Ti Bonder | Not applicable |
|
Ceramic Spheres |
Yes — for mechanical retention | Yes — for mechanical retention |
|
Opaque Mask Layer |
Yes — Ti Opaque Mask Paste (Pink and Yellow) | Not included |
|
Chairside Adjustment |
Limited (fired ceramic) | Yes (composite-based) |
| Best For | PFM-style, full-arch Titanium structures | Full-arch hybrid zirconia cases |
Tips for Best Results
Surface Cleanliness Is Non-Negotiable
The single most common cause of bonding failure is contamination. Before applying any bonding material, the framework must be completely free of oils from handling, residues from sintering, or contaminants from the milling process. Even a fingerprint on the framework surface can compromise the bond. Always handle frameworks with clean instruments or gloves after the final cleaning step.
Follow Firing Temperatures Precisely
Each component of the CGI Ti and Zir bonding systems has a specific firing range. Firing too low will leave the bonder chemically inactive; firing too high can degrade the material or cause unexpected color changes in the opaque layer. Always verify your furnace calibration before running bonding cycles, particularly for titanium cases where the oxide formation window is temperature-sensitive.
Sphere Distribution Matters
When applying Ceramic Spheres, aim for an even distribution across the entire bonding surface. Gaps in sphere coverage translate directly into areas of reduced mechanical retention. The spheres should be applied in a thin, consistent layer — multiple thin applications are preferable to a single thick coat which can result in uneven sphere density or pooling at angles.
Integrating With CrystalCeram® Porcelain
For titanium-ceramic restorations, the CGI Ti-Bonding System is fully compatible with CrystalCeram® porcelain fine powders from Ceragroup Industries. After the Ti Bonder and Mask Paste layers are complete with Ceramic Spheres application and fired, CrystalCeram® Internal Modifiers and Dentine can be applied following standard layering protocols. The bonding system provides the framework adhesion layer; CrystalCeram® provides the esthetic veneering system on top.

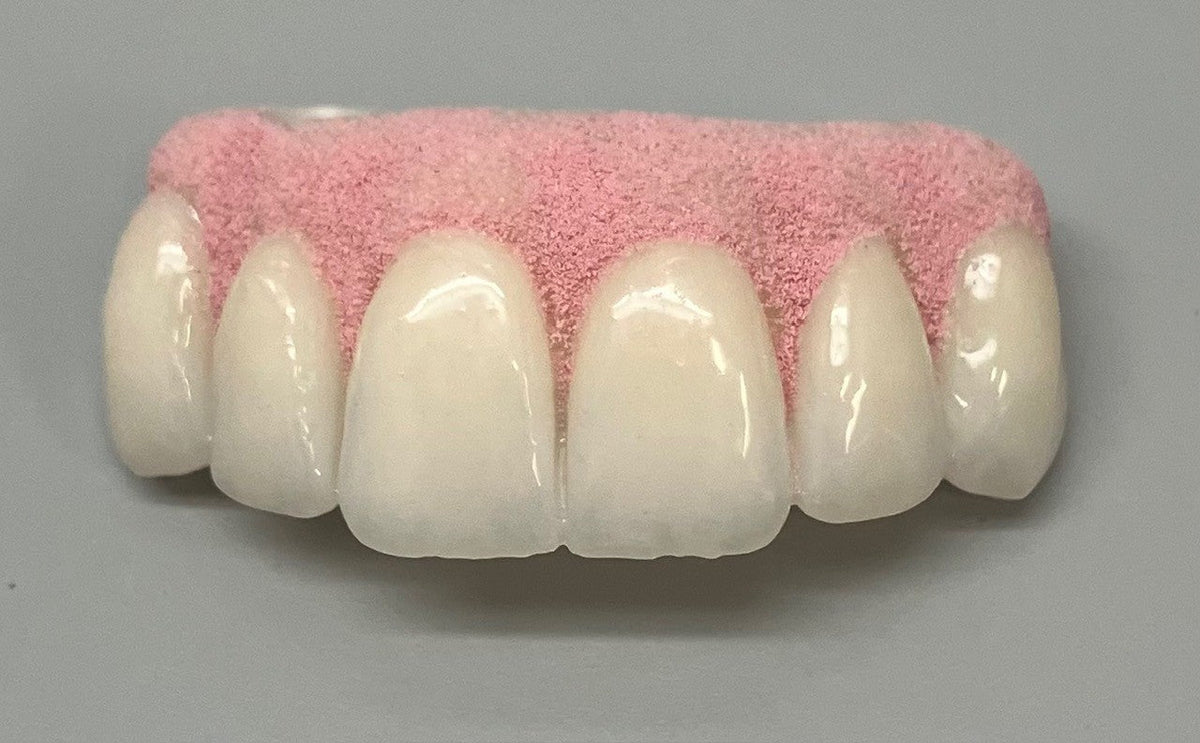

For full-arch hybrid cases using the Zir-Bonder system, consider using pink Ceramic Spheres over areas that will receive pink composite gingival veneering. The pink base color reduces the masking requirements for the composite, helping achieve more natural-looking soft tissue results with fewer composite layers.
Whether you are working with titanium frameworks or zirconia-composite hybrids, the CGI Ti and Zir Bonding Systems gives you the mechanical and chemical foundation every durable restoration depends on.
