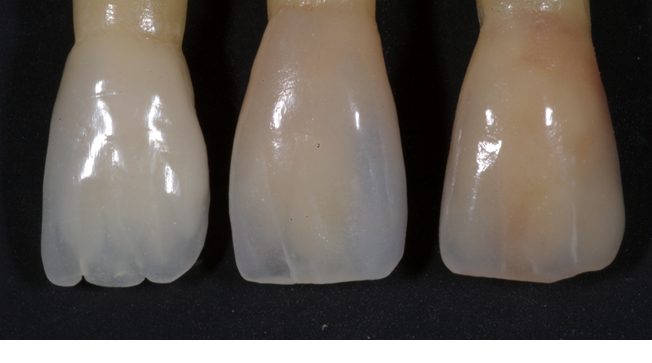

The Art & Science of PFM Porcelain
A complete guide to achieving exceptional shade accuracy, structural integrity, and lasting aesthetics with CGI dental porcelain systems.
Porcelain Fused to Metal (PFM) restorations remain one of the most clinically proven and widely used solutions in restorative dentistry. When executed with precision — and with the right ceramic system — they deliver strength, natural aesthetics, and longevity that patients and clinicians rely on for decades. CGI dental porcelain was engineered specifically to meet the demanding requirements of PFM work, combining exceptional handling with uncompromising optical performance.
Why CGI Was Built for PFM
Not all porcelain systems are created equal — and PFM work, in particular, demands a ceramic that behaves predictably across multiple firing cycles, bonds reliably to metal substrates, and delivers consistent shade outcomes even in thin-layer situations. CGI addresses each of these requirements by design.
The system offers Opaque, Dentine, and Opacious Dentine in all shades A0 through D4, supported by an extensive range of modifiers, incisals, stains, and glazes. This breadth of palette gives ceramists the tools to achieve accurate shade matching directly through the layering process — without relying on corrective staining after the fact.
Key Clinical Advantages
- Immediate and accurate shade matching through opaque/dentine/incisal layering alone
- Color stability even at varied porcelain thicknesses — critical in limited-space cases
- Extremely stable linear expansion coefficients across up to six firing cycles
- Minimum sintering shrinkage — reduces the need for excessive overbuild
- Great translucency and color depth with "live," natural fluorescence in all light conditions
- Suitable for ceramists of all experience levels, from apprentice to master ceramist
Framework Design: Setting the Foundation
The quality of a PFM restoration is inseparable from the quality of its metallic foundation. The framework is not merely a structural element — it directly determines where ceramic can be supported, how evenly it can be applied, and how the final restoration will perform under occlusal load.
Minimum Thickness Requirements
PFM restorations require a minimum combined thickness of 1.5 to 1.8 mm, of which 0.3 to 0.5 mm is the metal portion. The space reserved for ceramic coverage should never be less than 0.8 mm, and the ceramic layer at the incisal border should not exceed 2 mm — beyond that, the risk of fracture increases substantially.
Framework Geometry
Sharp corners, indentations, angles, and curved edges are the most common sources of ceramic failure in PFM work. Every sharp transition on the metal surface is a potential origin point for a fracture. Every indentation can create a defect in the fusing process or a concentration point for thermal contraction stresses. The metal should support the ceramic comprehensively — particularly in areas of occlusal contact — ensuring that contact points between ceramic and metal never coincide with contact points against the opposing dentition.
Critical rule: For complete or extensive arch restorations, incorporate a stabilizing bar of sufficient width and leave it in place until the final ceramic glaze firing is complete. Any flexion in the structure can cause fractures or delamination of the ceramic.
Surface Preparation
Before the first opaque layer is applied, the metal surface must be perfectly clean, free of porosity, and thoroughly degreased. Use aluminum oxide abrasives (100–110 microns) for sandblasting, always grinding in the same direction without crossing cutting lines. Finish with a steam jet and degrease with mildly acidic liquids — never oily substances.
Alloy Selection & Compatibility
CGI porcelains are compatible with the majority of alloys used for ceramic fused to metal restorations. However, alloy behavior is never entirely predictable, and published expansion data can diverge from real-world performance — particularly at elevated firing temperatures or after multiple cycles.
| Parameter | CGI Specification |
|---|---|
| Recommended Alloy CTE Range | 14.0 – 14.4 × 10⁻⁶/°C (measured at 25–500°C) |
| CGI Porcelain CTE (All Types) | 12.60 – 13.0 × 10⁻⁶/°C (25–500°C) |
| Glass Transition Temperature | 480 – 500°C (all CGI porcelains) |
| Flexural Strength | 125 MPa (std dev ±10 MPa) |
| Chemical Solubility | 55 μg/cm² |
| Adhesion to Alloys (tested) | 36.8 MPa with CERAKAST 1 non-precious |
| Maximum Re-cast Alloy Addition | 50% of total casting weight |
To verify alloy compatibility in the laboratory, subject a framework of at least six units to a minimum of six firing cycles. If no cracks or fractures appear by the sixth cycle, the alloy can be considered reliably compatible. When in doubt, contact Ceragroup Industries or your authorized CGI distributor.
"Always air cool CGI porcelain by immediately opening the oven and directly removing the restoration upon completion of the firing cycle. Slow cooling raises the coefficient of expansion and pushes CGI porcelain beyond its predisposed values."
The Layering Process: Step by Step
The power of CGI's layering system lies in its simplicity. Accurate shade results are achievable with nothing more than the correct opaque, dentine, and incisal combination — no complex stacking required for standard cases. For advanced aesthetic work, the system scales to accommodate any level of chromatic complexity.
Opaque Foundation
Apply MASK as the first thin wash layer to establish the base. Follow with shade-matched opaque in two fired coats. Final metal coverage should be total — no visible metal after firing.
Dentine Build-Up
Pre-condense porcelain on a flat mixing surface. Build dentine in coordinated layers with a minimum combined thickness of 1.2–1.3 mm above the opaque. Dry from the side — never from above.
Incisal Characterization
Apply incisal porcelains in thin layers to the incisal third only to maintain color saturation. Full-surface incisal coverage creates a gray, washed-out appearance — avoid this common mistake.
Glaze & Final Firing
After morphological corrections, apply Universal Glaze or Universal Fluorescent Glaze in a very fine layer. Fire without vacuum. Immediately air-cool upon completion of the cycle.
Mastering the Opaque System
The opaque layer does far more than hide the metal substrate — it is the true chromatic foundation of the restoration. The shade, value, and thickness of the opaque layer directly determines how the overlying dentine will read visually. Understanding this relationship is essential to achieving consistent results across cases.
Lighter opaques reflect more light from the treated surface, producing a more luminous and lighter-appearing final color. Darker opaques heighten chroma at the expense of luminosity, yielding a more saturated appearance. Modest value adjustments can be made by substituting, say, an A3 opaque with A2 (lighter) or A4 (darker) — but this requires experience to execute predictably.
Opaque Modifiers Available
CGI offers seven opaque modifiers in both powder and paste formats: Brown · Ocher · Pink · Yellow · Gray · Orange · White. These allow subtle tonal corrections without changing the base shade designation.
Pro technique: CGI opaques are among the finest grain opaque powders available. This allows complete metal coverage with a very thin layer, preserving space for the dentine build-up. Do not fear applying a generous paste coat — once fired, two combined opaque layers will total less than 0.2 mm.
Incisal Porcelain Selection Guide
Six primary incisal porcelains are available, each matched to specific dentine shade groups. Selecting the correct incisal is not optional — using a shade that is too bright or too dark relative to the dentine will shift the overall restoration visually in ways that are difficult to correct after firing.
| Dentine Shade | Recommended Incisal |
|---|---|
| A0, B0 | Bleach |
| A1, B1, C1, D2 | Clear |
| A2, B2, D3 | Extra Light |
| A3, C2, D4 | Light |
| A3.5, B3, B4, C3 | Medium |
| A4, C4 | Dark |
Additional specialty incisals are also available: Blue, Pink, Translucent, Violet, White, Yellow, and four Opal variants (Clear, Light, Medium, Dark). These can be used independently or as modifiers layered over the primary incisal.
Firing: The Variables That Matter Most
No two furnaces behave identically — even units of the same model from the same production run will differ in calibration, muffle characteristics, and heating element performance over time. The CGI firing chart provides recommended temperatures, but the ceramist must calibrate to their specific furnace and monitor results empirically.
The reference standard for properly matured porcelain is a fine eggshell surface texture with a good natural luster. Opaque, granular surfaces indicate under-firing. Overly smooth, overly lustrous surfaces with weak color indicate over-firing. The texture is the truth — not the thermostat reading.
| Stage | Opaque 1st | Opaque 2nd | Dentines / Incisals | Stains & Glazes |
|---|---|---|---|---|
| Insertion Temp. | 593°C | 593°C | 593°C | 300°C |
| Heat Rate | 50°C/min | 50°C/min | 50°C/min | 40°C/min |
| Vacuum Start | 593°C | 593°C | 593°C | None |
| Vacuum Stop | 982°C | 977°C | 927°C | None |
| Firing Temp. | 982°C | 977°C | 927°C | 750–850°C |
| Hold Time | 0 | 0 | 0 | 1 min |
| Cool Time | Immediate air-cool | Immediate air-cool | 1–5 min | Immediate air-cool |
CGI recommends a maximum of six firing cycles per restoration. Beyond this threshold, dimensional and chromatic stability can no longer be guaranteed. For corrections after the sixth firing, use CGI Add On porcelain, which is formulated to fire at lower temperatures and harmonize chromatically with previously glazed surfaces.
Standards & Technical Compliance
CGI porcelains are manufactured in conformance with ISO 6872/95 (Dental Ceramic) and ISO 9693/99 (Metal-ceramic restorative systems). The material contains no Lead, Uranium, Antimony, or Cadmium, and total radioactivity is below 0.2 Bq·g⁻¹ of U238 — well within regulatory thresholds for clinical use in all major markets.
