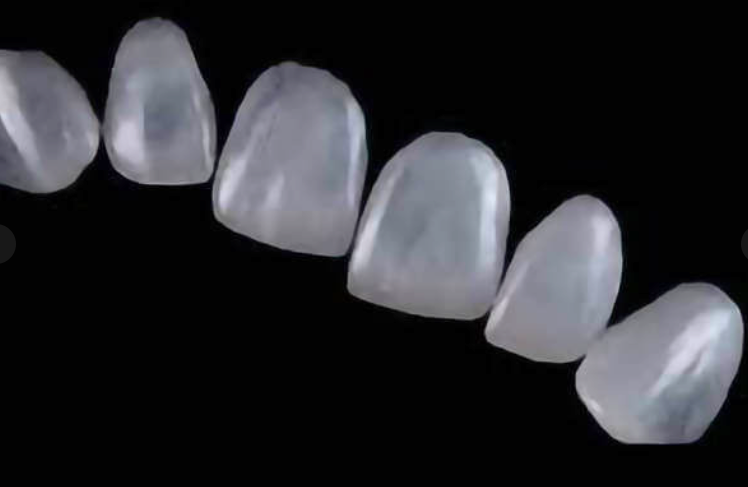

The Art of Feldspathic Veneers
Material science, layering technique, and clinical considerations — a comprehensive guide for the modern dental technician.
What Makes Feldspathic Porcelain Unique
Feldspathic porcelain is a glass-matrix ceramic composed of three primary minerals: feldspar (KAlSi₃O₈), quartz (SiO₂), and kaolin (Al₂O₃·2SiO₂·2H₂O). When sintered, these components fuse into a material whose refractive index and translucency closely replicate natural enamel — a property no pressed or milled ceramic has yet matched at ultra-thin dimensions.
The material's flexural strength sits at approximately 60–70 MPa. While this places it below lithium disilicate and zirconia, it also means the material wears at a rate similar to natural enamel, reducing antagonist wear and producing a more biomimetic restoration in the anterior zone.
Feldspathic porcelain achieves its aesthetic superiority not through strength, but through its unmatched ability to interact with light — diffusing, refracting, and transmitting it in the same way natural enamel does.
Why the Hand-Layered Method Matters
Unlike pressed or CAD/CAM-milled restorations that start as a homogeneous block, feldspathic veneers are built from the ground up through an additive layering process. The ceramist applies small increments of powder porcelain — each varying in opacity, chroma, and translucency — to construct a monolithic restoration with true internal depth.
Optical Depth
Multiple porcelain powders blended within a single layer create internal color transitions that mimic the opalescence and fluorescence of dentin and enamel.
Ultra-Thin Fabrication
Veneers can be finished as thin as 0.3mm while maintaining color integrity — impossible with pressed materials that require minimum thickness for opacity masking.
Surface Characterization
Stains, check lines, maverick coloring, and developmental lobes can be built in during layering rather than painted on as a surface effect.
Shade Blending
Unmatched ability to integrate with untreated adjacent teeth. Critical when restoring only 1–3 teeth within an otherwise natural arch.
Building the Veneer: Step by Step
The fabrication process demands precision at every stage. Each step compounds on the previous one, and errors in the early phases propagate through the final result. Here is the standard workflow for refractory die technique:
Die Preparation
Pour a refractory die from the impression or printed model, they can also be milled from a refractory material CAD/CAM disc, Apply die spacer and seal the surface. The refractory material must withstand porcelain firing temperatures without distortion.
Opaque & Dentin Layup
Apply a thin wash of opaque porcelain if masking is needed. Build dentin body porcelain to establish chroma, value, and anatomical form. Control moisture meticulously — excess liquid causes slumping and porosity.
Enamel & Incisal Layering
Layer translucent and opalescent enamels over the dentin body. Incorporate effect porcelains (blue, amber, violet opal) to replicate the optical properties of the patient's natural enamel halo.
Firing & Adjustment
Fire in a calibrated vacuum furnace according to the porcelain manufacturer's schedule. Expect 10–15% volumetric shrinkage. Multiple firing cycles (typically 2–4) are standard to achieve proper contour and surface quality.
Staining, Glazing & Finishing
Apply surface stains for final characterization. Glaze fire to achieve natural luster, or leave unglazed and polish to a high shine for a more lifelike surface texture. Verify marginal fit and proximal contacts on the master die.
CrystalCeram® Fine Ceramic Powders by CGI
The quality of a feldspathic veneer is only as good as the porcelain you build it with. For technicians seeking consistent translucency, reliable firing behavior, and true-to-life aesthetics, CrystalCeram® Fine Ceramic Powders from Ceragroup Industries (CGI) are purpose-built for the hand-layered workflow.
Manufactured in the United States — making CGI the only domestic producer of dental porcelain, stain, and glaze — CrystalCeram® powders are engineered with controlled particle size and fluorescent properties that replicate the optical behavior of natural enamel under all lighting conditions. The product line includes dentin, enamel, translucent, and opal effect powders that give the ceramist full creative control over chroma, value, and depth.
CrystalCeram® by CGI
A complete feldspathic porcelain system designed for ceramists who demand artisan-level control over their layering work. From opaque foundations to translucent incisal effects, CrystalCeram® delivers the optical depth and shade consistency that high-end veneer cases require.
When paired with the CGI stain and glaze system — including the CrystalCeram® Fluorescent Glaze Paste — technicians have a fully integrated material ecosystem for building, characterizing, and finishing feldspathic veneers without needing to mix and match across manufacturers.
Feldspathic vs. Lithium Silicate
Both material systems have a place in the modern lab. Understanding their respective strengths helps you guide clinicians toward the right choice for each case.
| Property | Feldspathic | Lithium Silicate |
|---|---|---|
| Flexural Strength | 60–70 MPa | 360–400 MPa |
| Minimum Thickness | 0.3 mm | 0.5–0.6 mm |
| Translucency | Superior — enamel-like | Good — slightly more opaque |
| Fabrication | Hand-layered (additive) | Pressed or CAD/CAM milled |
| Lab Time | Higher — artisan process | Lower — standardized workflow |
| Prep Requirement | Minimal to none | Moderate reduction needed |
| Ideal Zone | Anterior — max aesthetics | Anterior/Posterior — function + aesthetics |
| Enamel Bond Dependency | Critical — requires enamel | More forgiving on dentin |
When to Recommend Feldspathic
Knowing when feldspathic porcelain is the optimal material choice is as important as knowing how to fabricate it. These are the clinical scenarios where the material performs best:
Cases where maximum aesthetic integration is the primary objective — single-tooth replacements in the smile zone, diastema closures, minor alignment corrections, and restorations that must blend invisibly with untreated natural teeth. The material is also the first choice for no-prep or minimal-prep cases, where preserving enamel is both the clinical and the patient's priority.
Feldspathic veneers are best indicated for anterior teeth (centrals through canines) with occasional use on premolars. The tooth must retain more than 50% enamel coverage after preparation to ensure a reliable, long-term adhesive bond.
When to Choose a Different Material
Active bruxism without splint therapy. The material's low flexural strength makes it vulnerable to fracture under parafunction. If the clinician hasn't addressed grinding, steer the case toward a stronger substrate.
Insufficient enamel remaining. Feldspathic veneers depend on the resin–enamel bond for structural integrity. If more than half the bonding surface is dentin, a full-coverage crown or lithium silicate may be more predictable.
Posterior load-bearing restorations. Molars and premolars under heavy occlusal forces are outside the material's comfort zone. Reserve feldspathic for the aesthetic zone.
High-opacity masking requirements. Severely discolored substrates (metal posts, dark tetracycline staining) may need the opacity that pressed ceramics provide. Feldspathic's translucency becomes a liability when there's too much to hide.
Cementation: The Make-or-Break Phase
Even a flawlessly fabricated veneer will fail if the bonding protocol is compromised. The intaglio surface of the feldspathic veneer is etched with hydrofluoric acid (typically 9.5% for 60–90 seconds), then silanated to create a chemical bond with the resin cement. The prepared tooth surface is acid-etched, primed, and bonded under strict moisture isolation.
Because the veneer's structural integrity is derived almost entirely from the adhesive bond rather than the material's inherent strength, the cementation appointment is arguably the most critical step in the entire workflow. The technician's role here is to ensure marginal accuracy, internal fit, and a clean, properly etched bonding surface before the case leaves the lab.
Ship veneers on the refractory die or a soft silicone matrix rather than loose in a box. This protects ultra-thin margins during transit and gives the clinician a clear seating reference.
Preserving a Craft
The dental industry's shift toward digital workflows and pressed ceramics has been driven by efficiency and predictability — both valid priorities. But this shift has also meant fewer ceramists are being trained in the art of hand-layered porcelain. The technical skill required to build color, depth, and translucency into a 0.3mm shell is not easily automated or replicated by a milling machine.
For technicians who invest in mastering feldspathic layering, the payoff is significant. These cases occupy the highest tier of cosmetic dentistry. Clinicians who work at this level seek lab partners who can deliver artistry, not just restorations. Long-term clinical data supports the durability of well-bonded feldspathic veneers, with studies documenting excellent outcomes at 10, 15, and even 20+ years of service.
The material isn't disappearing. It's becoming more specialized — and the technicians who can deliver it at a high level will remain indispensable.
