Veneer Preparation: Lithium Disilicate vs. Zirconia
Side-by-side preparation parameters for conventional and minimally invasive veneers, and why each material asks for a different prep.

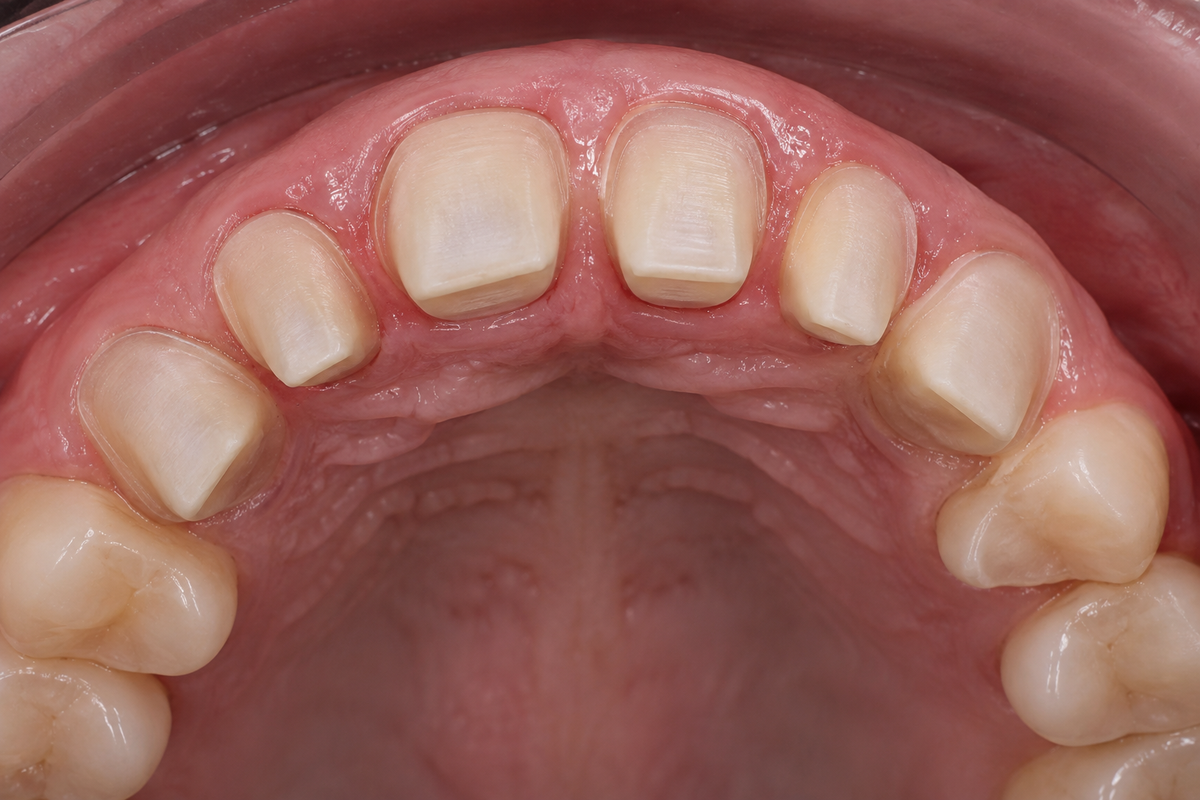

01At a glance
Lithium disilicate veneers can be prepared thinner and more conservatively than zirconia veneers, because lithium disilicate etches and bonds reliably to enamel while zirconia does not. Zirconia needs slightly more depth, rounder geometry and more enamel surface area to make up for weaker adhesion and CAD/CAM milling limits.
Lithium disilicate
- Glass-ceramic; HF-etchable, silane-bondable
- Reliable at ~0.3 mm (pressed)
- Excellent translucency at thin sections
- Fine or feather margins acceptable when pressed
- First choice for no-prep and ultra-thin veneers
Zirconia (4Y / 5Y)
- Polycrystalline; not etchable, MDP-bonded
- Needs ~0.4–0.6 mm minimum
- More opaque; better masking of dark teeth
- Defined chamfer, rounded angles; no feather edges
- Higher bulk strength; edges chip if thin
Minimally invasive = about 0.2–0.5 mm reduction, kept entirely or almost entirely in enamel. Conventional = about 0.5–0.8 mm facial reduction with incisal coverage. Values are typical clinical ranges; always confirm minimum thicknesses in the material's instructions for use (IFU) and with your lab.
Reductions in cross-section
Mid-sagittal sections of a maxillary central incisor, drawn to scale (see the 1 mm bar). The shaded area is the tooth structure removed and replaced by the veneer; the final contour matches the original tooth.
The zirconia preps carry more depth at every level, a thicker incisal edge and a more defined chamfer, while the minimal lithium disilicate veneer stays almost entirely within enamel.
Facial view: depth map and margins
Facial reduction by thirds, with depth-groove positions (dotted lines), the finish line (dashed) and the incisal zone removed for a butt-joint design.
Reading the map: darker shading means deeper reduction. Proximal margins sit just facial to the contact so they stay hidden in the embrasure; the gingival margin is equigingival and in enamel. For minimal preps use 0–0.3 mm for lithium disilicate and 0.3–0.5 mm for zirconia.
Incisal design options
The butt joint is simple to prepare, scan, mill and seat. The overlap adds a palatal chamfer; with lithium disilicate it can help guide seating, but in zirconia the thin palatal lip is a common chipping site.
02Material overview
The two materials differ most in how they bond and how they are fabricated. Those two properties drive almost every preparation decision.
| Property | Lithium disilicate | Zirconia (4Y/5Y high-translucency) |
|---|---|---|
| Structure | Glass-ceramic: lithium disilicate crystals in a glass matrix | Polycrystalline, no glass phase |
| Flexural strength (approx.) | 360–530 MPa | 4Y: ~750–1,000 MPa · 5Y: ~600–750 MPa (3Y: 1,000+ MPa, too opaque for most veneers) |
| Etchable with HF | Yes: 5% HF, ~20 s | No |
| Adhesion to tooth | High and predictable (micromechanical + silane chemical bond) | Moderate, technique-sensitive (air abrasion + MDP primer/cement) |
| Fabrication | Pressed or CAD/CAM milled | CAD/CAM milled, then sintered (~20–25% shrinkage) |
| Thinnest reliable section | ~0.3 mm pressed · ~0.4 mm milled | ~0.4–0.5 mm (4Y) · ~0.5–0.6 mm (5Y) |
| Translucency when thin | Excellent; natural light transmission | Lower; improves with 5Y but still more opaque |
| Masking dark substrate | Limited at thin sections | Better |
| Edge chipping at thin margins | Low when pressed | Higher (milling and green-state handling) |
Strength figures are approximate and vary by brand; the chosen product's IFU takes priority.
03Conventional veneer preparation
For conventional veneers, zirconia typically needs about 0.1–0.3 mm more facial reduction than lithium disilicate, a more defined chamfer and rounder internal angles.
| Prep feature | Lithium disilicate | Zirconia | Why it differs |
|---|---|---|---|
| Facial reduction, cervical third | 0.3–0.5 mm | 0.5–0.6 mm | Enamel is thin cervically; zirconia needs more bulk to reach its milled minimum |
| Facial reduction, middle / incisal thirds | 0.5–0.7 mm | 0.6–0.8 mm | Zirconia's lower translucency needs thickness for shade depth |
| Incisal reduction | 1.0–1.5 mm | 1.5–2.0 mm | Most loaded, least supported area; thin zirconia edges chip |
| Incisal design | Butt joint (preferred) or incisal overlap with short palatal chamfer | Butt joint with rounded palatal edge; avoid long palatal wrap | Butt joint is simplest to mill and seat; a thin palatal lip chips in zirconia |
| Finish line | Light chamfer 0.3–0.5 mm; supra- or equigingival | Defined chamfer 0.5 mm; supra- or equigingival | Zirconia needs a readable margin for scanning/milling and thicker edges |
| Feather-edge margins | Acceptable when pressed | Avoid | Mill burs and sintering cannot reproduce very thin edges reliably |
| Proximal extension | Into contact area, contact preserved; break contact only for diastema or color change | Same, finishing in a clear chamfer; no thin proximal wings | Thin zirconia extensions chip during milling and seating |
| Internal line angles | Rounded | Well rounded (≥0.5 mm radius, matched to mill bur size) | Sharp internal angles cannot be milled and concentrate stress |
| Path of insertion | Facial or incisofacial | Single, clearly defined path; no undercuts | Zirconia is harder to adjust chairside; seating must be passive |
| Enamel target | ≥50% enamel on bonded surface, ideally 100% | As much enamel as possible, ideally 100% | Both bond best to enamel; zirconia depends on it more |
| Surface finish | Smooth, no sharp edges | Very smooth, all transitions blended | Smoother preps scan and mill more accurately and seat with less stress |
04Minimally invasive veneer preparation
Lithium disilicate is the stronger choice for true minimal-prep and no-prep veneers. Zirconia can be used minimally invasively, but rarely as a no-prep veneer.
| Prep feature | Lithium disilicate | Zirconia | Why it differs |
|---|---|---|---|
| Facial reduction | 0–0.3 mm; no-prep possible when the tooth is retroclined or undersized | 0.3–0.5 mm; no-prep only in selected additive cases with lab-confirmed thickness | Lithium disilicate presses to ~0.3 mm; high-translucency zirconia needs ~0.4–0.6 mm |
| Depth control | Depth cutters 0.2 / 0.3 mm through a mock-up | Depth cutters 0.3 / 0.5 mm through a mock-up | Different minimums, same principle: measure from the final contour |
| Incisal | Often none; wrap 0.5–1.0 mm only if length is added | 0.5–1.0 mm reduction or a rounded incisal bevel for bulk | Thin zirconia incisal edges are the most common chipping site |
| Finish line | Minimal, often no defined margin; smooth enamel transition, supragingival | Light but defined chamfer (0.3 mm), supragingival | Mill and scanner need a readable margin; a vanishing zirconia margin chips |
| Proximal | Stop short of contact, or no proximal prep | Stop short of contact; smooth, rounded borders | Keeps the veneer in enamel and avoids thin wings |
| Enamel | 100% enamel | 100% enamel (essential) | Zirconia's weaker bond cannot tolerate a dentin-heavy thin veneer |
| Undercuts and edges | Light polish of enamel irregularities | Remove all undercuts; round every edge | Pressed veneers can follow minor irregularities; zirconia must seat passively |
| Retention strategy | Adhesion alone is enough | Adhesion + maximum enamel surface area + a clear seat | Compensates for lower bond strength |
| Best indications | Color change of 1–2 shades, small diastemas, worn edges, undersized teeth | Mild darkening needing masking, bruxism concerns, cases wanting extra fracture resistance | Translucency and bonding favor lithium disilicate; masking and strength favor zirconia |
05Why the preparations differ
Five material properties explain every difference in the comparison tables.
Bonding chemistry
Lithium disilicate has a glass phase that hydrofluoric acid etches into a micro-retentive surface; silane then bonds it chemically to resin cement. The bond is strong and predictable, so a thin veneer is held by adhesion alone. Zirconia has no glass phase and cannot be etched. It relies on air abrasion and MDP-containing primers or cements, which bond well but are more technique-sensitive and can degrade over time.
Minimum thickness
Pressed lithium disilicate can be made as thin as ~0.3 mm and stays strong once bonded. Zirconia veneer grades need roughly 0.4–0.6 mm to survive milling, sintering and function.
Fabrication method
Milling burs have a physical diameter, so they cannot cut sharp internal angles or razor-thin margins. Zirconia is milled oversized in a soft "green" state and shrinks about 20–25% during sintering, which makes thin edges fragile. Pressed lithium disilicate flows into a mold and reproduces fine margins well.
Optics
Lithium disilicate transmits light like enamel, so it looks natural even at 0.3–0.5 mm. Zirconia is more opaque: it needs more thickness to build shade depth, but that opacity helps mask discolored teeth.
Strength vs. edge toughness
Zirconia is stronger in bulk, but thin zirconia edges chip, especially during milling and try-in. Lithium disilicate is weaker in bulk, yet a bonded thin veneer gains much of its strength from the tooth.
Margins and internal angles up close
Magnified profiles showing why zirconia needs a defined chamfer and rounded internal angles, while pressed lithium disilicate tolerates finer margins.
Finish line profiles
Internal angles vs. the milling bur
A milling bur is round, so it cannot cut into a sharp internal corner. The restoration then contacts the corner first and rocks or fails to seat fully. Rounding internal angles to at least the bur radius (about 0.5 mm) lets the intaglio match the prep. This matters for any milled veneer, and always for zirconia.
06Step-by-step preparation protocol
The sequence is the same for both materials; only depths and edge details change.
- Records and diagnostic wax-up. Photos, smile analysis and scans. Tell the lab the planned material so the wax-up reflects its minimum thickness.
- Mock-up. Transfer the wax-up with bis-acrylic in a silicone index. Confirm esthetics, phonetics and function with the patient before cutting.
- Depth grooves through the mock-up. LD 0.2–0.3 mm minimal · 0.5 mm conventional. ZR 0.3–0.5 mm minimal · 0.6–0.8 mm conventional. Mark groove depths with pencil.
- Remove the mock-up and connect the grooves. Reduce only where pencil marks remain. Follow the tooth's three facial planes, not one flat plane.
- Incisal reduction (if planned). LD 1.0–1.5 mm conventional, often none for minimal. ZR 1.5–2.0 mm conventional, 0.5–1.0 mm minimal. Butt joint with rounded palatal edge.
- Margins. LD light chamfer, can be very fine when pressed. ZR defined 0.3–0.5 mm chamfer, no feather edges. Keep margins in enamel, supra- or equigingival.
- Proximal areas. Extend into the embrasure to hide margins; keep the contact unless closing a space or changing color. ZR keep borders rounded, never wafer-thin.
- Verify with the silicone index. Check facial, incisal and cervical thirds against a sectioned index of the wax-up. Confirm the material minimum is met everywhere.
- Refine and polish. Round all angles (more generously for zirconia), remove undercuts, finish with fine diamonds or polishers.
- Immediate dentin sealing. If dentin is exposed, seal it with adhesive right after prep. It protects the pulp and improves the final bond, which matters most for zirconia.
- Impression or scan and shade. Gentle retraction for equigingival margins. Record a stump shade of each prepared tooth so the lab can adjust thickness or opacity.
- Provisionals. Use the mock-up index to make spot-bonded provisionals; avoid etching the whole enamel surface.
07Bonding and cementation
The prep only succeeds if the bonding protocol matches the material. Tooth-side steps are the same; restoration-side steps are not.
| Step | Lithium disilicate | Zirconia |
|---|---|---|
| Try-in | Water-soluble try-in paste | Water-soluble try-in paste |
| Clean after try-in | Phosphoric acid or a dedicated cleaning paste | Dedicated cleaning paste only; phosphoric acid contaminates zirconia with phosphate |
| Intaglio treatment | 5% hydrofluoric acid ~20 s, rinse, dry | Air abrasion, 30–50 µm alumina at low pressure (~1–2 bar) |
| Primer | Silane (or universal primer containing silane) | MDP-containing primer |
| Tooth side | Rubber dam; 37% phosphoric acid on enamel 30 s; adhesive | Same |
| Cement | Light-cure resin cement for thin veneers | MDP-containing resin cement; dual-cure if thick or opaque enough to block curing light |
| Finishing | Remove excess, cure under glycerin gel, polish margins | Same; avoid adjusting zirconia margins with coarse burs |
Schematic of the bonded interface (not to scale). Lithium disilicate gains a micromechanical and chemical bond from etching and silane. Zirconia relies on air-abrasion roughness and MDP chemistry, which is why its prep keeps more enamel and a clear seat.
08Material selection and common mistakes
Choose lithium disilicate when esthetics and enamel preservation come first; choose zirconia when masking or extra fracture resistance matter more.
| Clinical situation | Better choice |
|---|---|
| Healthy enamel, small color or shape change | Lithium disilicate |
| No-prep or ultra-thin (≤0.3 mm) veneer | Lithium disilicate |
| Highly esthetic anterior case needing natural translucency | Lithium disilicate |
| Moderately dark or stained substrate needing masking | Zirconia (or a more opaque lithium disilicate with more depth) |
| Parafunction or history of veneer fracture | Zirconia (occlusal guard for both) |
| Limited enamel remaining | Neither ideal as a veneer; consider a partial or full crown |
Common mistakes to avoid
- Preparing from the original tooth instead of through the mock-up, which over-reduces into dentin.
- Using lithium disilicate depths for a zirconia veneer, leaving zirconia below its minimum thickness.
- Feather-edge or knife-edge margins on zirconia, which chip during milling or seating.
- Sharp internal angles on zirconia preps, which the mill cannot reproduce and which block full seating.
- Cleaning zirconia with phosphoric acid after try-in, which weakens the MDP bond.
- Leaving large areas of exposed dentin unsealed, lowering bond strength and raising sensitivity.
- Not telling the lab the planned material before the wax-up, so the mock-up does not reflect the needed thickness.
This guide summarizes typical clinical ranges for educational purposes. It does not replace clinical judgment or the manufacturer's instructions for use for any specific material, which take precedence on minimum thicknesses, surface treatment and cementation.
