The Zirconia Paradox
On the delicate arithmetic between strength and light — and the new generation of dental ceramics learning to do both.
Why zirconia is not one material.
Ask ten dentists what zirconia is and you'll likely get ten answers — and they'd all be partially right. What began in the early 2000s as a monochromatic, chalky "white metal" used only for substructures has evolved into a family of at least a dozen distinct materials, each with its own crystallographic personality, optical behavior, and clinical sweet spot.
The paradox at the heart of modern zirconia is simple but unforgiving: strength and translucency are inversely related. Every gain in aesthetics costs something in mechanical performance, and every bridge-worthy block sacrifices something in light transmission.
This monograph unpacks what dental zirconia actually is, why material from one source behaves differently from another, which products genuinely deliver the translucency demanded by cosmetic cases, and where the research on 3D-printed zirconia stands as of early 2026.
The three phases of zirconium dioxide.
Pure zirconium dioxide (ZrO₂) is polymorphic — it rearranges its crystal structure as temperature changes. Left to cool on its own, the tetragonal-to-monoclinic transformation involves a roughly 4% volume expansion, enough to shatter a pure zirconia restoration. Stabilizing oxides — "dopants" — keep the material useful at mouth temperature.
Monoclinic
Stable at room temperature in pure ZrO₂. Low strength, low translucency. The form we stabilize away from.
Tetragonal
Stabilized by yttria. Self-heals cracks through transformation toughening. Strong, less translucent.
Cubic
Isotropic — light passes without directional scattering. Beautifully translucent, mechanically weaker.
The strength trick: transformation toughening
Tetragonal zirconia has a remarkable self-defense mechanism. When a microcrack begins to propagate, the tetragonal grains at the crack tip transform to monoclinic and expand, squeezing the crack closed. This is why 3Y-TZP behaves more like a tough metal than a brittle ceramic — and why cubic zirconia, which cannot do this, is mechanically lazy despite its beauty.
The translucency trick: reducing light scattering
Light scattering happens at pores, grain boundaries, and secondary phases. Three levers dominate the translucency game: reduce alumina content (alumina's refractive index of 1.76 vs zirconia's 2.15 creates harsh scattering at grain boundaries), increase the cubic phase fraction, and control grain size and porosity.
A family tree, organized by yttria content.
The mol% of yttria is the single most useful shorthand for predicting how a zirconia will behave. The chart below distills what the current peer-reviewed literature tells us about each class.
~100% tetragonal. The original workhorse. Low alumina in modern "HT" versions.
60–75% tetragonal, 25–40% cubic. The hybrid workhorse.
~50% cubic phase. The aesthetic specialist. Little transformation toughening left.

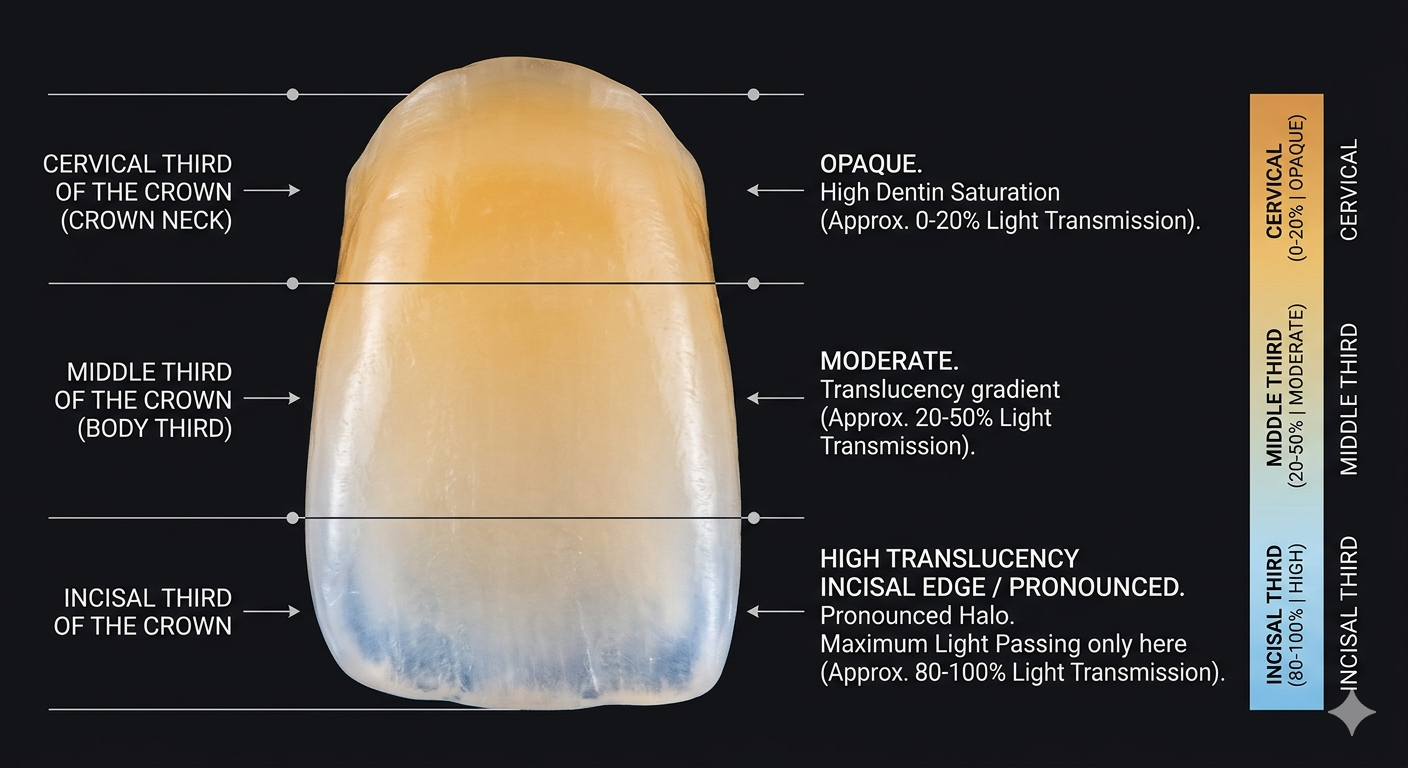

3Y-4Y-5Y gradient within one disc. Cervical strength, incisal translucency.
Why zirconia from different sources behaves differently.
A common misconception is that "zirconia is zirconia." If both blocks are 5Y, the thinking goes, they should perform identically. In practice, they don't — and the reasons are surprisingly concrete.
Powder Source
Most premium dental zirconia powder comes from a small number of suppliers. Tosoh Corporation (Japan) is the historical reference-grade source, underpinning KATANA, Lava, IPS e.max ZirCAD and others. Daiichi Kigenso and Shandong Guocera supply the growing mid-market.
Pressing Method
Uniaxial pressing produces density gradients across a puck. Cold isostatic pressing (CIP) applies equal pressure from all directions, yielding homogeneous microstructure and predictable sintering shrinkage. Virtually all premium discs are CIP-pressed.
Formulation Secrets
Within a single yttria class, manufacturers tune sintering aids, alumina content, grain-growth inhibitors, and coloring oxides. Two different "5Y" products can have noticeably different cubic-phase fractions and grain-size distributions — and therefore different optics.
Where Soho and similar brands fit
"Soho" belongs to a large and growing group of zirconia brands — many originating from Chinese manufacturers — that offer competitive pricing and respectable specifications on paper. Other names in this tier include Yucera, Zotion, Aidite, Upcera, HUGE Dental, Maxidon, and a range of private-label options. The category as a whole has improved substantially over the past five years, and several of these suppliers now use Tosoh or equivalent premium powders for their top lines.
When comparing these brands against established references like KATANA, IPS e.max ZirCAD Prime, Lava Esthetic, Prettau, and Cercon xt, clinicians and labs should look at batch-to-batch shade consistency, sintering shrinkage tolerance, documented clinical studies, raw powder traceability, and regulatory certification (CE, FDA 510(k), ISO 13485).
The translucency leaderboard — which zirconia disappears into the smile?
Translucency in dental ceramics is typically measured as Translucency Parameter (TP) or as total light transmission (T%) at 550 nm through a 1 mm specimen. For reference: lithium disilicate (IPS e.max Press HT) transmits around 75% of visible light above 500 nm. 3Y-TZP lands in the mid-30s to low-40s. Modern 5Y-PSZ sits roughly halfway between.
Based on published in-vitro comparisons and manufacturer specifications, here is where the leading cosmetic-tier zirconias fall:
Widely regarded as the benchmark for monolithic anterior zirconia. Ultra-translucent 5Y with gradational chroma cervical-to-incisal.
5Y designed specifically for anterior aesthetics, backed by the strong Zirkonzahn workflow ecosystem.
5Y multilayer with distinctive fluorescence. Tops the 5Y group in measured T% at 550 nm.
Solid North American clinical adoption; published optical data rank transmittance among the highest in the class.
Extra-high-translucency 5Y available in all 16 VITA shades plus bleach.
Strong performer in comparative veneer studies, with marginal adaptation that matched or exceeded KATANA UTML in published work.
3Y/5Y hybrid with gradient translucency. One of the best documented products in this segment.
Translucency roughly equivalent to e.max LT at 1.5 mm thickness, with notably better strength than UTML.
Hybrid composition with >50% of disc height at >1100 MPa — unusually versatile for long anterior bridges.
High-translucency multilayer with established Cercon workflow integration.
Reliable posterior workhorse, bridge-capable, strong milling behavior.
Long-established 3Y with dependable clinical track record.
The #1 prescribed brand of full-contour zirconia in North America.
Classic zirconia for copings and posterior restorations.
A caveat about translucency numbers
Manufacturers measure translucency under different conditions — specimen thickness, background color, light source, instrument. A "49% translucency" claim from one vendor is not necessarily comparable to "49%" from another. Independent peer-reviewed studies are more reliable than datasheet claims. And translucency is only one contributor to a natural-looking restoration — fluorescence, opalescence, and value matter at least as much.
3D-printed zirconia — where the research actually stands.
Additive manufacturing of zirconia has moved from curiosity to active clinical research in a remarkably short time, and 2025 delivered the most significant progress yet.
The workflow
The dominant technologies are all indirect additive methods: they print a green body of zirconia particles suspended in a photopolymer binder, then remove the binder and sinter to full density. The main variants are Stereolithography (SLA), Digital Light Processing (DLP), and Lithography-based Ceramic Manufacturing (LCM) — Lithoz of Vienna is widely cited as the current benchmark for dental-grade printed zirconia.
Mechanical performance — the encouraging news
Recent data are increasingly positive. A 2024 study in the Journal of Prosthetic Dentistry (Kyung et al.) found 3D-printed 4Y-TZP actually showed higher flexural strength than milled 4Y-TZP, exceeding the 800 MPa clinical threshold. The 2024 systematic review by Alghauli et al. concluded that at thicknesses >1.5 mm, printed and milled zirconia perform comparably. Milled materials still show higher Weibull moduli — meaning fewer defects and more predictable strength — but the gap is closing.
Open research questions
The active frontier includes low-temperature degradation (LTD), long-term clinical outcomes, bond strength to 10-MDP resin cements, biofilm behavior, translucency of printed 5Y, and the practical handling of recycled ceramic powder — which develops agglomerates that reduce mechanical properties in subsequent prints.
Principles that cut through the marketing.
Match yttria to the indication, not to the marketing.
A single anterior crown wants 5Y. A three-unit posterior bridge wants 3Y or a 3Y/5Y hybrid with high strength in the connector zone. Premolar monolithic crowns are where 4Y shines.
Respect the reduction requirements.
3Y tolerates 1.0 mm, 4Y wants 1.2 mm, 5Y needs 1.5 mm. Feather-edge margins on 5Y anterior crowns are a gamble the fatigue data does not support.
Ask your lab what they are actually using.
Most dentists do not know which zirconia their lab is running. A five-minute conversation about block brand, yttria content, and sintering protocol is worth more than a dozen prescription-pad shade codes.
Treat premium and budget brands differently.
Chinese-manufactured zirconia, Soho among them, has closed much of the quality gap — especially for posterior work in experienced labs. For high-stakes anterior cosmetic cases, documented premium brands (KATANA UTML, Prettau Anterior, ZirCAD Prime Esthetic, Lava Esthetic, DD cubeX²) remain hard to beat.
Watch the printed zirconia space carefully.
The mechanical data already support it. The debinding bottleneck has a credible solution as of mid-2025. Within the next two to three years, commercial chairside printed zirconia crowns are plausible for the first time.
